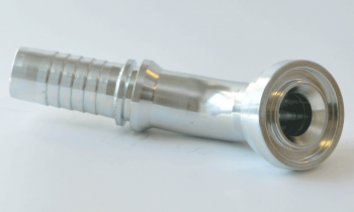

SAE3000 45°
45° FLÄNS SAE 3000 KOD 61
| Artikelnummer | SLANGNIPPEL TUM | FLÄNS TUM | A | C | D |
|---|---|---|---|---|---|
| AX40B-08-08 | 1/2 | 1/2" | 55,2 | 30 | 22,6 |
| AX40B-08-12 | 1/2" | 3/4" | 60,1 | 38 | 24,6 |
| AX40B-12-12 | 3/4" | 3/4" | 68,5 | 38 | 27,9 |
| AX40B-12-16 | 3/4" | 1" | 70,5 | 44,5 | 29 |
| AX40B-16-16 | 1" | 1" | 74,4 | 44,5 | 27 |
| AX40B-16-20 | 1" | 1.1/4" | 76,2 | 50,8 | 29 |
| AX40B-20-20 | 1.1/4" | 1.1/4" | 88 | 50,8 | 31 |
| AX40B-20-24 | 1.1/4" | 1.1/2" | 90 | 60,3 | 31 |
| AX40B-24-24 | 1.1/2" | 1.1/2" | 100 | 60,3 | 36,5 |
| AX40B-24-32 | 1.1/2" | 2" | 105 | 71,4 | 36,5 |
| AX40B-32-24 | 2" | 1.1/2" | 122,3 | 60,3 | 36,6 |
| AX40B-32-32 | 2" | 2" | 142,3 | 71,4 | 53 |
| AX40B-48-48 | 3" | 3" | 123,2 | 101,6 | 41,3 |
